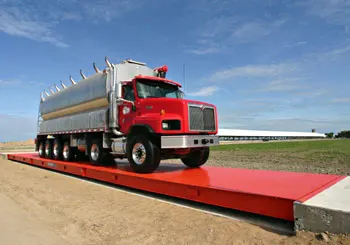

Diamondback 8560 Steel Deck Truck Scale
Diamondback 8560Serviced from the top. Cleaned out from underneath.
The lineup
The full line: truck, rail and floor scales and indicators
36 models across 5 categories, grouped by family below.
Truck Scales
The 8550 and 8560 series under their current name — Diamondback is the direct continuation, which is why both sets of numbers appear in the manuals. Fully electronic, above ground, low profile, on self-restoring double-ended shear beam suspension.

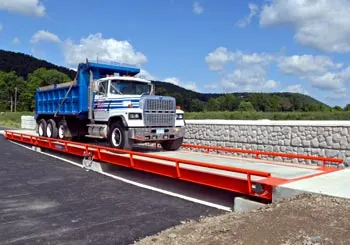

Diamondback 8550 Field Pour Truck Scale
Diamondback 8550A 10 in. concrete deck, poured on site into Diamondback steel modules

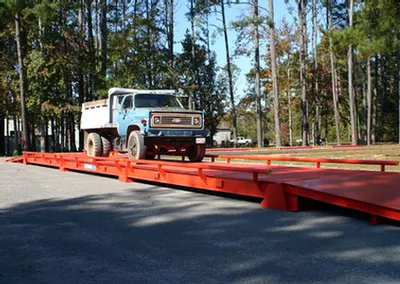

Diamondback 8560 Portable Truck Scale
Diamondback 8560 PVSets on piers or gravel, moves with the job, and can go permanent later

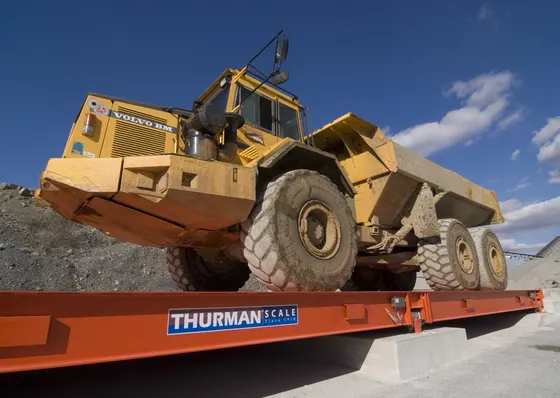

Diamondback 8560XD Extreme Duty Truck Scale
Diamondback 8560XD130,000 lb concentrated load capacity, for off-road haul traffic
Side by side
| Model | Diamondback 8560 | Diamondback 8550 | Diamondback 8560 PV | Diamondback 8560XD |
|---|---|---|---|---|
| Concentrated Load Capacity (CLC) | 90,000 lb | 90,000 lb | 90,000 lb | 130,000 lb |
| Scale Capacity | 60 to 135 tons | 60 to 135 tons | 60 to 135 tons | 135 tons |
| Deck Type | Welded steel plate, 1/4 in. | Concrete, 10 in., poured on site (4,000 psi) | Welded steel plate | Welded steel plate, 3/8 in. |
| Widths | 10 ft or 11 ft; custom sizes available | 10 ft or 11 ft; custom sizes available | 10 ft; custom sizes available | 10 to 14 ft |
| Configuration | Above ground, flat top | Above ground, flat top | Portable, above ground; modules preassembled on section stands | Above ground |
Load cells mount under the outside structural I-beams and are serviced from the side of the platform. Stainless rocker column cells, hermetically sealed to IP69K.
Falcon 8555 Field Pour Truck Scale
Falcon 8555Concrete poured on site. Cells serviced from the side.

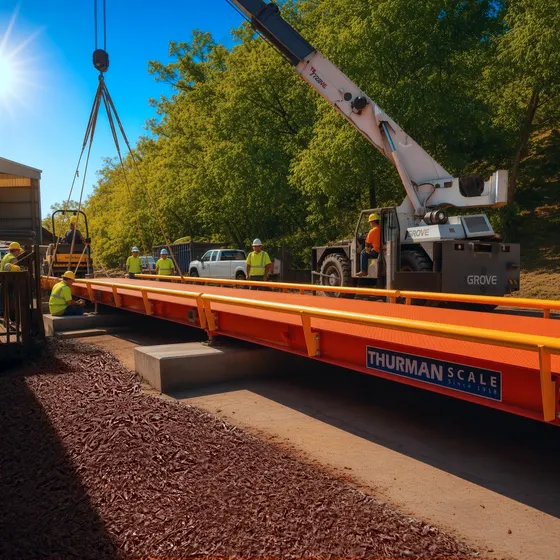

Falcon 8565 Steel Deck Truck Scale
Falcon 8565Steel deck welded at the factory. Cells serviced from the side.
Falcon 8565XD Extreme Duty Truck Scale
Falcon 8565XDSized for haul trucks: 120,000 lb CLC and 14 ft widths
Falcon 8565 Portable Truck Scale
Falcon 8565 PVA steel deck truck scale that moves with the job
Side by side
| Model | Falcon 8555 | Falcon 8555HD | Falcon 8565 | Falcon 8565HD | Falcon 8565XD | Falcon 8565 PV |
|---|---|---|---|---|---|---|
| Concentrated Load Capacity (CLC) | 90,000 lb | 100,000 lb | 90,000 lb | 100,000 lb | 120,000 lb | 90,000 lb |
| Scale Capacity | 60 to 150 tons | 60 to 150 tons | 60 to 150 tons | 60 to 150 tons | 75 to 150 tons | 90 to 150 tons |
| Deck Type | Field-poured concrete, 10 in. | Field-poured concrete, 12 in. | Welded steel tread plate, 1/4 in. | Welded steel tread plate, 3/8 in. | Welded steel tread plate, 3/8 in. | Steel deck plate, 1/4 in. |
| Widths | 10 ft or 11 ft; custom widths available | 10, 11 or 12 ft; custom widths available | 10 ft or 11 ft; custom widths available | 10, 11 or 12 ft; custom widths available | 10, 11, 12 or 14 ft | 10 ft; custom widths available |
| Configuration | Above ground; pit-friendly with optional cover plates | Above ground; pit-friendly with optional cover plates | Above ground; pit-friendly with optional cover plates | Above ground; pit-friendly with optional cover plates | Above ground; pit-friendly with optional cover plates; the 14 ft width is built with top-access cover plates only | Portable, above ground, on a self-contained modular sub-frame |
Lever-and-fulcrum weighbridges, for sites that specify a mechanical scale.

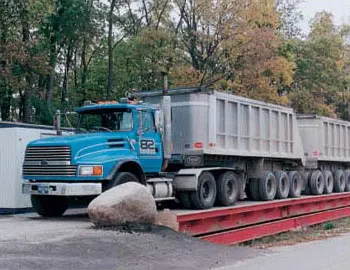

8100 Portable Mechanical Truck Scale
8100Installed for good, or moved to the next site on its own sub-frame

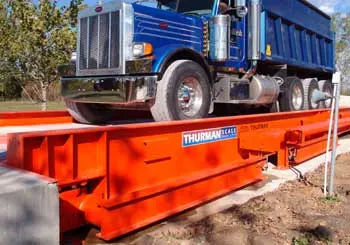

8140 Side-Arm Mechanical Truck Scale
8140 S.A.M.Above ground at an 18 in. profile, with the side rails built in
Side by side
| Model | 8100 | 8140 S.A.M. |
|---|---|---|
| Concentrated Load Capacity (CLC) | 70,000 lb | 60,000 lb |
| Scale Capacity | 50 to 135 tons | 40 to 100 tons |
| Deck Type | Welded steel tread plate, 3/8 in. | Welded raised-pattern steel |
| Configuration | Portable or permanent; sub-frame bolts to concrete piers | Above ground, low profile |
Railroad Scales

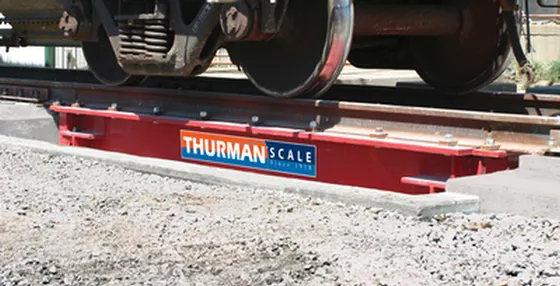

8765 Railroad Track Scale
8765 RRTShips in assembled modules, with the rails on the main girders
Indicators
The vehicle-weighing indicator. Four models, one indicator: the display, the menus, the web server and the NTEP certificate are the same across all four, and only the load-cell interface and the enclosure change.
Intalogix
Intalogix
Side by side

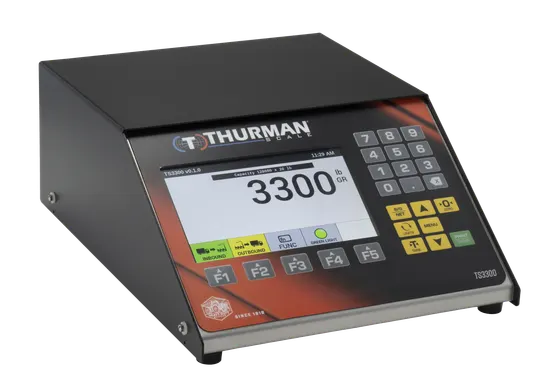

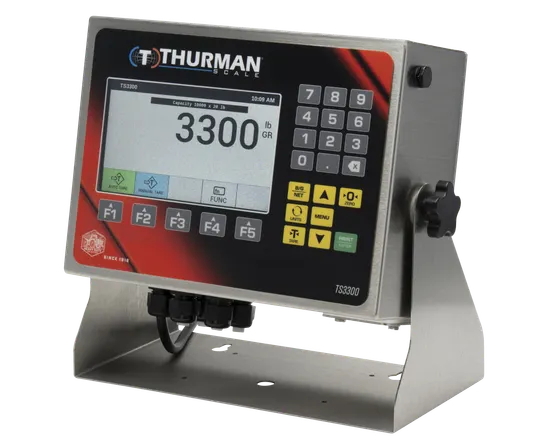

| Model | TS3301 | TS3311 | TS3302 | TS3312 |
|---|---|---|---|---|
| Form Factor | Desktop | Desktop | Desk / wall mount | Desk / wall mount |
| Enclosure / Material | Aluminum base, powder-coated mild steel cover | Aluminum base, powder-coated mild steel cover | Stainless steel washdown | Stainless steel washdown |
| NEMA Rating | NEMA 12 | NEMA 12 | NEMA 4X | NEMA 4X |
| Intalogix Option | No (analog) | Yes | No (analog) | Yes |

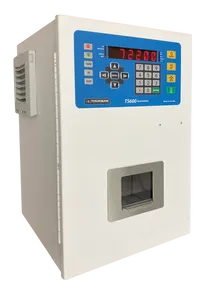

TS600 Driver Assist Terminal
TS600 DATDrivers weigh in and out and take the ticket without leaving the cab

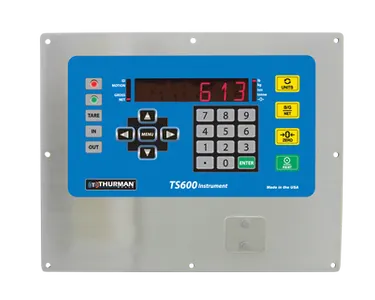

TS600 Panel Mount Indicator
TS600 PMSet into the console, 4.10 in. deep, serviced from a browser

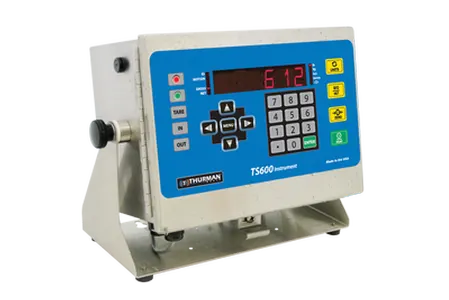

TS600 Washdown Indicator
TS602 / TS612NEMA 4X stainless for the wash bay, on a desk stand or the wall
Side by side

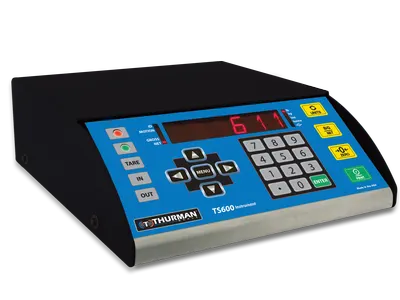

| Model | TS601 / TS611 | TS600 DAT | TS600 PM | TS602 / TS612 |
|---|---|---|---|---|
| Form Factor | Desktop | Outdoor kiosk/terminal | Panel mount | Desktop / wall |
| Enclosure / Material | NEMA 12 | Powder-coated mild steel | NEMA 12 | Stainless NEMA 4X |
| NEMA Rating | NEMA 12 | NEMA 4 | NEMA 12 | NEMA 4X |
| Intalogix Option | Optional (TS611) | Optional (TS613) | Optional | Optional (TS612) |
Side by side

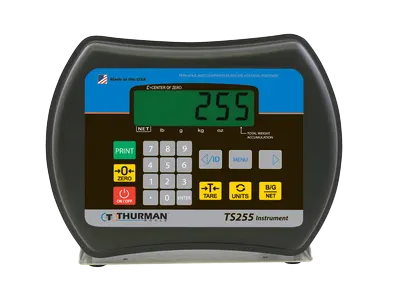

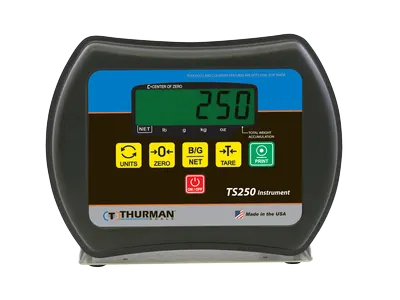

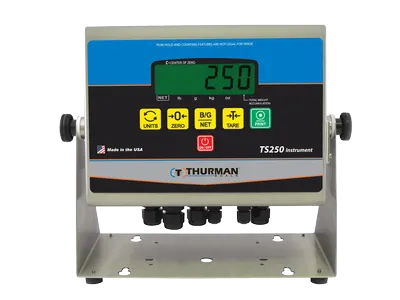

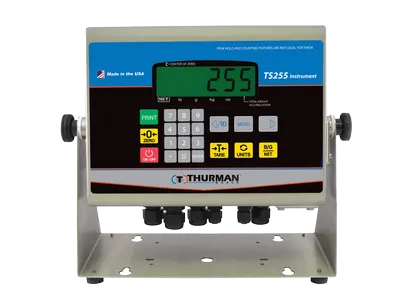

| Model | TS250 — ABS Enclosure | TS250 — Stainless NEMA 4X | TS255 — ABS Enclosure | TS255 — Stainless NEMA 4X |
|---|---|---|---|---|
| Form Factor | Wall / desktop | Wall / desktop | Wall / desktop / portable | Wall / desktop |
| Enclosure / Material | Rugged ABS | Stainless steel | Rugged ABS | Stainless steel |
| NEMA Rating | NEMA 1 | NEMA 4X | NEMA 1 | NEMA 4X |
| Connectivity / Comms | COM1/COM2 RS232, RS422 or RS485; 20 mA passive on COM2; external DB9. Optional Ethernet TCP, 4-20 mA, Bluetooth, PLC interface — Ethernet TCP and PLC cannot be combined | COM1/COM2 RS232, RS422 or RS485; 20 mA passive on COM2; glanded entry. Optional Ethernet TCP, 4-20 mA, Bluetooth, PLC interface — Ethernet TCP and PLC can be combined | COM1/COM2 RS232, RS422 or RS485; 20 mA passive on COM2; external DB9. Optional Ethernet TCP, 4-20 mA, Bluetooth, PLC interface — Ethernet TCP and PLC cannot be combined | COM1/COM2 RS232, RS422 or RS485; 20 mA passive on COM2; glanded entry. Optional Ethernet TCP, 4-20 mA, Bluetooth, PLC interface — Ethernet TCP and PLC can be combined |
Floor Scales

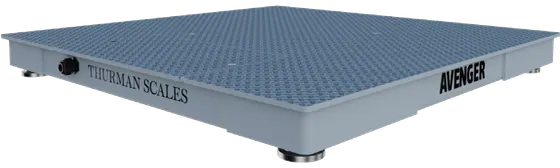

General-purpose industrial floor scale with a low platform height for load access.

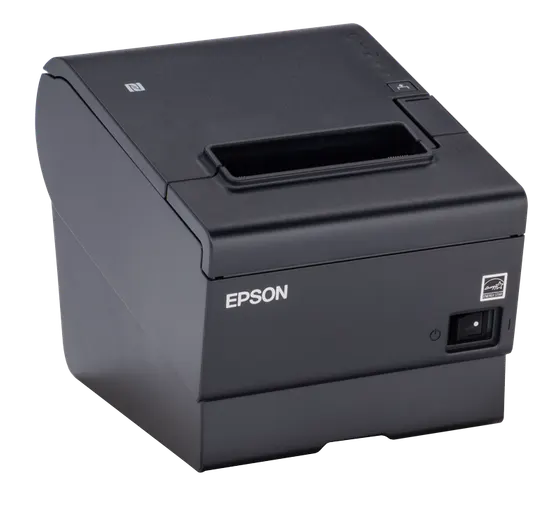

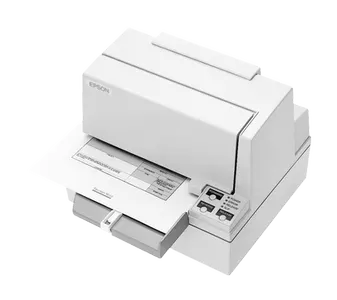

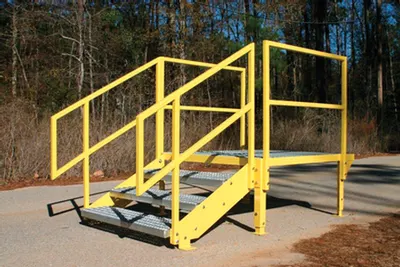

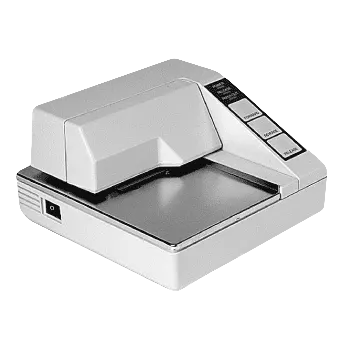

Accessories

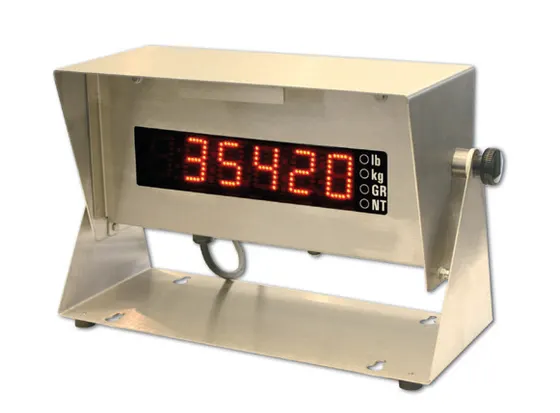

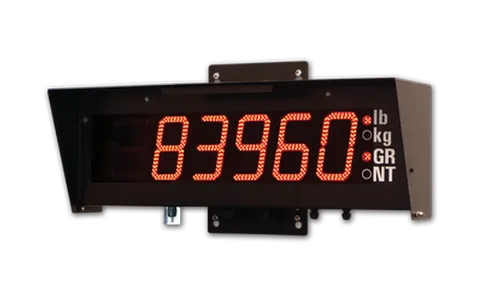

218 Series 1.5 in. Remote Display
218 1.5 in.A 218 in NEMA 4X stainless, for the room that gets hosed down
Side by side

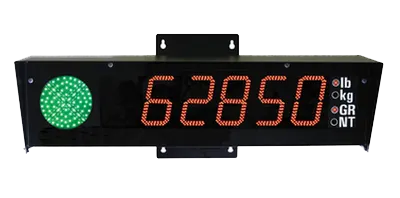

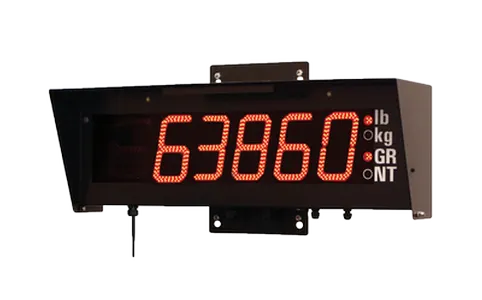

| Model | 218 | 218T | 218 RF | 218 1.5 in. |
|---|---|---|---|---|
| Digit Height | 5.0 in. (127 mm), three rows of LEDs per segment | 5.0 in. (127 mm), three rows of LEDs per segment | 5.0 in. (127 mm), three rows of LEDs per segment | 1.5 in. (38 mm) |
| Viewing Distance | Up to 300 ft (91 m) | Up to 300 ft (91 m) | Up to 300 ft (91 m) | Up to 75 ft (23 m) |
| Enclosure | NEMA 3 painted steel, with visor | NEMA 3 black powder-coated steel, with visor; 33.90 in. (861 mm) tall | NEMA 3 painted steel, with visor | NEMA 4X stainless steel, with visor |
| Material / Mounting | Pole or wall; rear mounting bracket included, pole hardware ordered separately | Pole or wall; rear mounting bracket included, pole hardware ordered separately | Wall bracket included; pole hardware ordered separately | Desk or wall; swivel bracket included |
Side by side

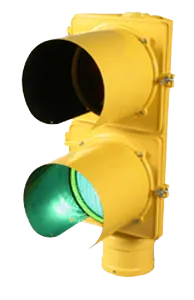

| Model | ACC 778 | Traffic Signals |
|---|---|---|
| Key features | LED signal | High-intensity LED; configurable 1-way or 2-way |
