Falcon 8565XD Extreme Duty Truck Scale
Sized for haul trucks: 120,000 lb CLC and 14 ft widths
At quarries, mines and on haul roads, off-road haul trucks are often wider and carry more per axle than highway traffic. The Falcon 8565XD is rated for both, in 10, 11, 12 and 14 ft widths. Hermetically sealed cells with a glass-to-metal cable entry keep moisture out on wet, harsh sites. The open bottom lets air move through the modules, so a crew can inspect and paint every part.

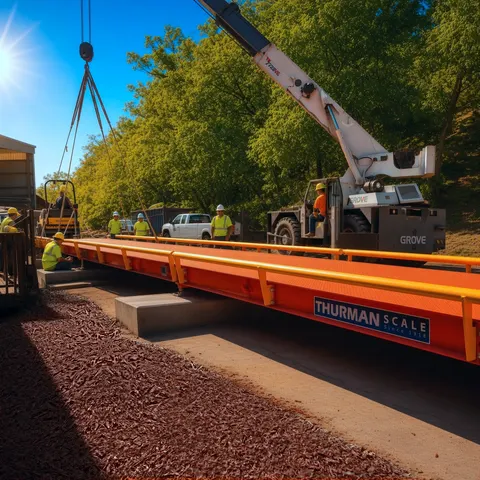

The deck is 3/8 in. plate on 16 in. I-beams, in an orthotropic structural steel module. Deflection is 1/1800 under legal highway loads, and scale capacity runs 75 to 150 tons. The 14 ft width is built with top-access cover plates.
Features
Open, ventilated understructure
The open bottom lets air move through the modules, so every part can be inspected and painted.
Sealed for wet, harsh sites
Hermetically sealed stainless steel cells with a glass-to-metal cable entry keep moisture out.
Armored load cell cables
Braided stainless steel sheathing protects each cable against chafing and rodents.
Five-year weighbridge warranty
Repair or replacement for defective material or workmanship, with service twice a year under an authorized Preventive Maintenance Agreement held without lapse.
What's included
- Factory-ready steel deck modules, one to three per scale
- Stainless steel rocker column load cells and base plates
- Load cell cables with ArmourGuard stainless steel sheathing, 15 ft
- Bumper checking hardware
- Approach ramp coping
- Anchor bolts
- Ground rods
- Surge voltage protector, 110 VAC
Not included
- Foundation
- Reinforcing steel for the foundation
- Indicator and printer
Specifications
Confirm current figures with your distributor before specifying.
Platform
- Configuration
- Above ground; pit-friendly with optional cover plates; the 14 ft width is built with top-access cover plates only
- Concentrated Load Capacity (CLC)
- 120,000 lb
- Scale Capacity
- 75 to 150 tons
- Deck Type
- Welded steel tread plate, 3/8 in.
- Widths
- 10, 11, 12 or 14 ft
- Lengths
- 27 to 105 ft; custom lengths available
- Maximum standard length
- 75 tons: 35 ft
- 125 tons: 70 ft
- 150 tons: 105 ft
- Modules
- 1 to 3
- Sections
- 2 to 4
- Deflection
- 1/1800
- Approach Height
- 21 in. standard and with cover plates; riser plates add their own height
- Minimum Division (e min)
- 10 lb
- Checking
- Bumper
Load cell
- Type
- Stainless steel rocker column, 17-4 PH, hermetically sealed with a glass-to-metal cable header
- Capacity
- 100,000 lb
- Height
- 6.0 in.
- Rating
- IP69K
- Resistance
- 1,000 ohms
- Output
- 2.0 mV/V
- Overload
- 300% ultimate
- Cable
- 15 ft, ArmourGuard stainless steel sheathing
- Approvals
- NTEP CC# 92-098; Factory Mutual (FM) approved
- Standards
- NTEP certified to widths of 14 ft
Options & accessories
Built at the factory
Side-by-side off-road vehicle scales
Added in the field
Manuals & literature
Questions
Is the Falcon 8565XD legal for trade in the US and Canada?
Yes. It carries NTEP Certificate of Conformance 22-087 in the United States, certified to platform widths of 14 ft, and Measurement Canada approval AM-6004 in Canada. They are separate approvals: an NTEP certificate alone does not clear a scale for commercial use in Canada.
Can the 8565XD go in a pit?
Yes, as the pit-friendly build. The standard scale is designed for an above-ground foundation. The pit-friendly build adds top access cover plates, one per section, ordered with the scale, and pit coping is ordered separately. The 14 ft wide scale is always built with cover plates.
