Diamondback 8550 Field Pour Truck Scale

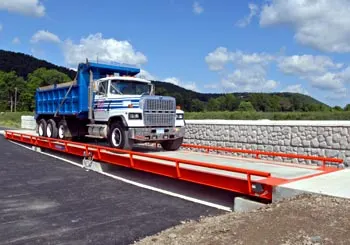

A 10 in. concrete deck, poured on site into Diamondback steel modules
The Diamondback 8550's concrete is poured on site, so each module ships and is lifted at about 3 tons and reaches 12.5 to 15 tons in place. The wide-flange I-beams carry the wet concrete themselves during the pour. A 70 ft x 10 ft platform takes about 21 cubic yards. Traffic starts once a core sample tests at 4,000 psi, after at least 14 days of moist cure.
The pour encases the interior structural steel, and a continuous 1/4 in. plate closes each module underside. Double-ended shear beam load cells carry the 90,000 lb concentrated load rating through parallel links, a full 360-degree shock suspension. Load cell compartments open from the top on four countersunk fasteners. The electronics mount on the side, and the profile is 15 in.
Features
Rigid composite deck
The pour encases the structural I-beams, forming a rigid deck that resists bending.
Room to clean out underneath
4-5/8 in. of clearance under the weighbridge leaves room for cleanout.
Access plate fasteners below the deck surface
Four countersunk hex fasteners hold each access plate, clear of wheel loading and wear.
Checking that holds its setting
CheckLink handles hard shocks and side loads, and needs no further adjustment after installation.
Electronics on the side of the scale
Junction boxes or Smart Sectional Controllers mount outside the weighbridge for routine maintenance.
Five-year weighbridge warranty
Repair or replacement for defective material or workmanship, with service twice a year under an authorized Preventive Maintenance Agreement held without lapse.
What's included
- Weighbridge modules ready to pour, factory assembled
- Double-ended shear beam load cells
- Suspension: load cell corner stands, load pins and links
- Anchor bolts, drilled type
- Approach coping
- Surge voltage protection kit
- Certified foundation drawings
Not included
- Concrete for the deck
- Foundation and foundation reinforcing steel
- Indicator, ticket printer and remote display
Specifications
Confirm current figures with your distributor before specifying.
Platform
- Configuration
- Above ground, flat top
- Concentrated Load Capacity (CLC)
- 90,000 lb
- Scale Capacity
- 60 to 135 tons
- Deck Type
- Concrete, 10 in., poured on site (4,000 psi)
- Widths
- 10 ft or 11 ft; custom sizes available
- Lengths
- 10 to 100 ft; custom sizes available
- Maximum standard length
- 60 tons: 23 ft 4 in.
- 90 tons: 46 ft 8 in.
- 120 tons: 70 ft
- 135 tons: 100 ft
- Modules
- 1 to 5
- Sections
- 2 to 6
- Approach Height
- 15 in.
- Checking
- CheckLink
- Suspension
- Parallel link, full 360-degree shock suspension
Load cell
- Type
- Double-ended shear beam, hardened alloy steel
- Capacity
- 75,000 lb
- Rating
- IP67
- Resistance
- 700 ohms
- Output
- 3.0 mV/V
- Cable
- Armour Guard woven metal sheathing
- Communications
- Analog or Intalogix, specified on order
- Standards
- Sections adjusted to NIST Handbook 44 tolerances
- Weighbridge modules welded to AWS D1.1, latest edition
- Steel prepared to SSPC-SP10 near-white blast, 3.0-3.5 mil profile, NACE No. 2 equivalent
Options & accessories
Manuals & literature
- Diamondback Electronic, Low-Profile, Field Pour Truck Scales (100924)Spec sheetPDF ⤓
- Thurman Scale Intalogix® Technology (100867)Spec sheetPDF ⤓
- Thurman Scale Intalogix® Technology (100868)Spec sheetPDF ⤓
- Diamondback Truck Scale (8550 Field Pour & 8560 Steel Deck) Installation ManualInstallation manualPDF ⤓
Questions
Is the Diamondback 8550 legal for trade in the US and Canada?
Yes. It carries NTEP Certificate of Conformance 89-016 in the United States and Measurement Canada approval AM-6004 in Canada. They are separate approvals: an NTEP certificate alone does not clear a scale for commercial use in Canada.
How much concrete does the deck take, and when can trucks use it?
About 3 cubic yards for a 10 ft x 10 ft scale, 21 for 70 ft x 10 ft and 33 for 100 ft x 11 ft. Use a 4,000 psi mix with 5 to 7 percent air entrainment, and keep the deck moist for at least 14 days. The scale goes into service once a core sample tests at 4,000 psi.
How many load cells does the scale use?
Two per section. A two-section scale uses four load cells and a six-section scale uses twelve. The base module carries four, and each intermediate or end module carries two.
