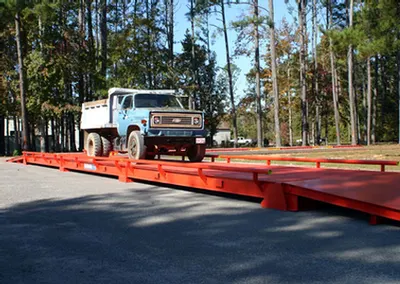

Diamondback 8560 PV Portable Truck Scale
Sets on piers or gravel, moves with the job, and can go permanent later
The Diamondback 8560 PV arrives with its load cells and suspension installed, ready for a seasonal yard, a construction phase or a leased site. It sets on concrete piers, firm level ground, leveled gravel or heavy timber bearing at least 3,000 PSF. Matched step hinges let the scale be lengthened, shortened or moved later. If a site becomes permanent, removing the bulkheads puts the same weighbridge on a permanent foundation.
The 8560 PV is the Diamondback 8560 steel deck on a portable sub-frame: welded diamond-tread plate at a 1/1260 deflection ratio and an 18 in. deck height. Double-ended shear beam load cells carry the 90,000 lb concentrated load rating through parallel links. The open bottom leaves 5-7/8 in. of clearance for cleanout. Standard lengths run 23 to 80 ft.
Features
Add, remove or move modules
Matched step hinges join the modules, so the scale can be lengthened, shortened or moved later.
Converts to a permanent install
Removing the bulkheads lets the same weighbridge go onto a permanent foundation.
Checking that holds its setting
CheckLink handles hard shocks and side loads, and needs no further adjustment after installation.
Room to clean out underneath
The open bottom leaves 5-7/8 in. of clearance for cleaning out beneath the deck.
Traction on deck and ramps
Diamond tread on the modules and the optional ramps promotes tire traction and deck durability.
Five-year weighbridge warranty
Repair or replacement for defective material or workmanship, with service twice a year under an authorized Preventive Maintenance Agreement held without lapse.
What's included
- Steel deck modules, factory assembled on their section stands
- Double-ended shear beam load cells and suspension, installed at the factory
- Junction boxes or Smart Sectional Controllers, specified on order
- Expansion anchor bolts, two per section
Not included
- Steel ramps and steel approaches
- Site preparation or foundation
- Indicator, ticket printer and remote display
Specifications
Confirm current figures with your distributor before specifying.
Platform
- Configuration
- Portable, above ground; modules preassembled on section stands
- Concentrated Load Capacity (CLC)
- 90,000 lb
- Scale Capacity
- 60 to 135 tons
- Deck Type
- Welded steel plate
- Widths
- 10 ft; custom sizes available
- Lengths
- 23 to 80 ft; custom sizes available
- Sections
- 2 to 5
- Deflection
- 1/1260
- Approach Height
- 18 in.
- Checking
- CheckLink
- Suspension
- Parallel link, full 360-degree shock suspension
Load cell
- Type
- Double-ended shear beam, hardened alloy steel
- Capacity
- 75,000 lb
- Rating
- IP67
- Resistance
- 700 ohms
- Output
- 3.0 mV/V
- Cable
- Armour Guard woven metal sheathing
- Communications
- Analog or Intalogix, specified on order
- Approvals
- NTEP CC# 06-114; Factory Mutual (FM) approved
- Standards
- Designed to meet or exceed NIST Handbook 44 requirements for Class III-L devices
- Smart Sectional Controller enclosures: stainless steel NEMA 4X
- Weighbridge welded to AWS D1.1, latest edition
Options & accessories
Manuals & literature
Questions
Is the Diamondback 8560 PV legal for trade in the US and Canada?
Yes. It carries NTEP Certificate of Conformance 89-016 in the United States and Measurement Canada approval AM-6004 in Canada. They are separate approvals: an NTEP certificate alone does not clear a scale for commercial use in Canada.
What surface does the Diamondback 8560 PV need?
Firm, unyielding ground that bears at least 3,000 PSF. Concrete piers give the most solid, level base. Firm level ground, a leveled gravel area or heavy wood supports also work. The sub-frames anchor with two bolts per section.
How is the scale moved to a new site?
Disconnect the electronics and remove the anchor bolts. Reinstall the lock-down and shipping bolts, then remove the connecting bolts between modules. Each module lifts by its weighbridge, with the sub-frame attached.
