Diamondback 8560 Steel Deck Truck Scale
Diamondback 8560Serviced from the top. Cleaned out from underneath.
Double-ended shear beam truck scalesDiamondback truck scales.
Diamondback truck scales.
Built to take the hit.
The double-ended shear beam sits in a self-centering mount, so the weighbridge returns to center after braking shock and off-center loading. CheckLink parallel-link suspension absorbs the motion of vehicles starting and stopping. Up to 130,000 lb concentrated load capacity on the 8560XD.
Request a quoteCompare with Falcon
The Diamondback specialty
Impact, and the heaviest loads
Diamondback is the family to specify when the traffic itself is the problem: haul roads, off-road vehicles and the highest concentrated loads of any scale Thurman manufactures. The load path is what earns it that job.
Self-centering load path
The double-ended shear beam sits in a self-centering mount. After impacts, braking shock and side loads the weighbridge returns to center on its own.
130,000 lb CLC on the 8560XD

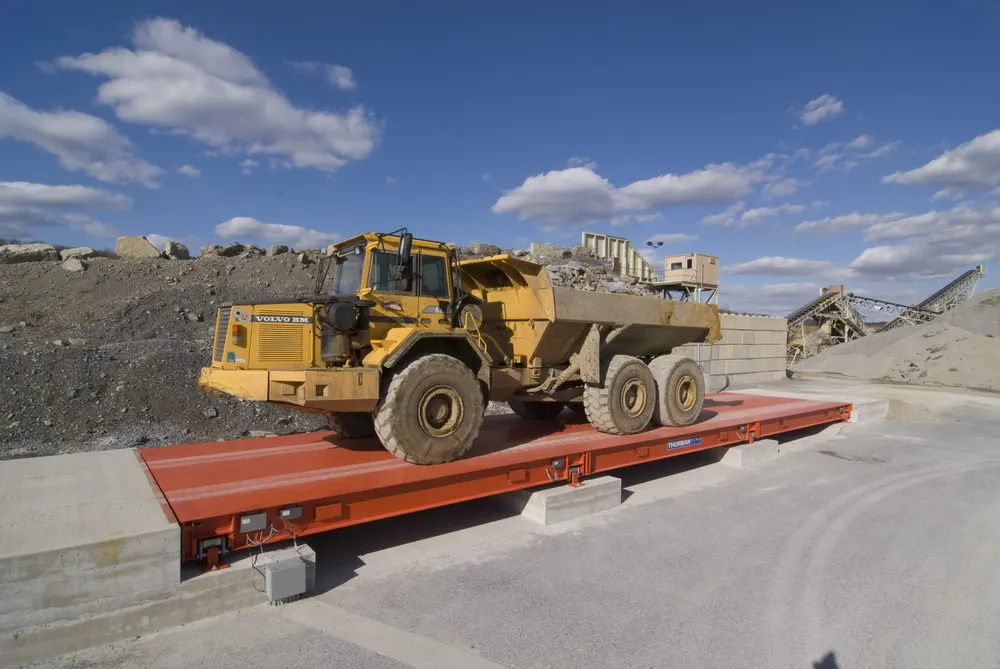

The Diamondback 8560XD carries a 130,000 lb concentrated load capacity at 135 tons, on 100,000 lb double-ended shear beam cells — the highest concentrated load capacity in the Thurman catalog.
CheckLink suspension
Parallel links give 360-degree shock suspension and absorb the motion of vehicles starting and stopping. The 8560XD adds four end-wall bumper check bolts, set at installation.
Top or side service access
On the 8560, 8550 and 8560 PV, each load cell is reached through a top corner access plate. The Diamondback 8560XD mounts its load cells and enclosures on the side of the weighbridge, so a technician works them from outside the bridge.
5-year weighbridge warranty
The structural steel weighbridge carries a 5-year warranty from shipment against defective material or workmanship, provided it is serviced at least twice a year by a Thurman-authorized service entity under a Preventive Maintenance Agreement that stays in force for the full warranty period.
Pick your deck
Diamondback 8550 Field Pour Truck Scale
Diamondback 8550A 10 in. concrete deck, poured on site into Diamondback steel modules
Diamondback 8560 Portable Truck Scale
Diamondback 8560 PVSets on piers or gravel, moves with the job, and can go permanent later
Diamondback 8560XD Extreme Duty Truck Scale
Diamondback 8560XD130,000 lb concentrated load capacity, for off-road haul traffic
Load cell interface
Analog or Intalogix®.
Every Thurman electronic scale is configured with one of two load-cell interfaces. Specify an analog interface to combine all the load cell signals into one that is read by the indicator, or trade up to Intalogix for a modern digital solution with the latest in lightning and surge technologies.
Thurman Analog
One summed signal, trimmed section by section.
- One Analog Section Controller for each truck scale section
- Each section is trimmed at a potentiometer on its controller
- The controllers interconnect and send one analog signal to the indicator
Serviced with a meter and standard test equipment.
Thurman Intalogix Technology
Every load cell reported, trimmed at the indicator.
- One Smart Sectional Controller for each truck scale section
- Controllers daisy-chain on a digital path
- One pit power supply per scale, with built-in lightning and surge protection
- The indicator reads each load cell and section for diagnostics
Digitize each load cell signal at the scale for individual monitoring, with enhanced protection against lightning and electrical surges.
Analog signalDigital data
One ordering rule. A scale supplied with Intalogix must be ordered with an Intalogix indicator at the same time — the interface and the indicator are specified together. Your distributor confirms which interface a given model ships with at quotation.
