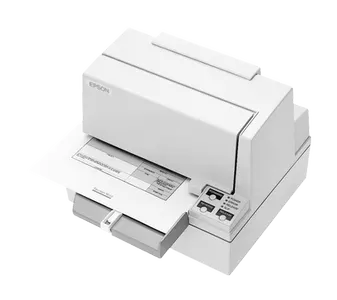

590 Series Ticket Printer
Wide tickets, an original and four copies, one insertion
The driver, the gate and accounting each get their own copy of the transaction. Gross, tare and net sit side by side in columns across the wide ticket. The dot-matrix head prints on both sweeps at 311 cps, so a multi-line ticket clears in one insertion. The ticket format comes from the indicator, so the layout is edited there.
Print width is 135.6 mm at 88 or 66 columns. Input is RS232C, with cables published for IS-3000, TS-3200, IT-2000 and TS600 Series indicators. The cabinet is 9.92 x 7.28 x 10.47 in. and 15 lb, so it wants a shelf of its own. It runs on cartridge ribbon 24810.
Features & benefits
88 or 66 column capacity, 135.6 mm print width
Fits a wide scale ticket with gross, tare and net columns set side by side.
311 cps bidirectional dot-matrix printing
The head prints on both sweeps, so a multi-line ticket clears in one insertion.
Print head rated 180,000 hours and 29 million lines
A published service-life figure a specifier can set against annual ticket volume.
One original and four copies per insertion
Covers the driver copy, the yard copy and the accounting copies in a single pass.
RS232C serial input with four published cables
14807, 16157 and 15599 cover IS-3000, TS-3200, TS-3200 NEMA 4X, IT-2000 and TS600.
4 KB receive buffer, 69 bytes selectable
Sized for the multi-line ticket formats the indicator sends down the serial port.
Ticket format and print commands live in the indicator
Layout is edited at the indicator or its web interface; the printer takes data and set-up.
Field-replaceable 24 VDC power supply, item 15736
A failed supply is a line-item replacement rather than a printer exchange.
What's included
- 590 Series ticket printer, item 24740
- Interface cable or connector kit, no charge when specified on the printer order
The technical picture
The 590 Series is a serial ticket printer for scale houses that print wide, multi-column tickets. Input is RS232C, and the indicator sends both the data and the ticket format. Item 24740. Cable 14807 connects an IS-3000, TS-3200 or TS600 Series indicator. Cable 16157 connects a TS-3200 in a NEMA 4X enclosure, and cable 15599 connects an IT-2000.
The cabinet measures 9.92 x 7.28 x 10.47 in and ships at 15 lb, so it wants a shelf of its own. Power is 120 VAC through a 24 VDC supply; the replacement supply is item 15736.
Column capacity is 88 or 66 columns across a 135.6 mm print width, at 0.12 in character height. The bidirectional dot-matrix head runs at 311 cps and is rated to 180,000 hours and 29 million lines. One insertion yields an original and four copies. Consumables are the 3-part carbonless ticket 98948 and cartridge ribbon 24810.
At a glance
| Type | Printer |
|---|---|
| Key features | High speed; multi-function |
Complete specifications are in the product documents below. Confirm current figures with your distributor before specifying.
Options & accessories
Item numbers and availability are confirmed at quotation. Ask your distributor to verify configuration and compatibility before ordering.
Order at purchase Factory or order time
Scale ticket3 part carbonless, 4 in. wide by 7.25 in. high, 1,000 per box
Custom company name, address, pre-numbering, extra copies and layout are available on request. Minimum order 1,000 tickets, three to four weeks for delivery.
Cartridge ribbon
The 590 uses cartridge ribbon 24810. It is a different item from ribbon 14979, which is the 295 Series ribbon.
Added in the field Order any time
8 ft printer interface cable
Connects an IS-3000, TS-3200 or TS600 Series indicator to the 590 Series printer. Specify the cable on the order; no charge when ordered with the printer. Manual 51423 calls for 14807 on TS611, TS612 and TS613 desktop and NEMA 4X serial connections.
CableTS-3200 NEMA 4X Series to 590 Series
For the TS-3200 in a NEMA 4X enclosure only. Specify on the order; no charge when ordered with the printer.
Printer interface cable
Connects an IT-2000 or TS-3200 Series indicator to the 590 Series printer. Specify on the order; no charge when ordered with the printer. No TS250 or TS255 cable to the 590 is cataloged, though the TS250 does support the 590. Confirm at order.
334 Series connector kitOne female DB9
Contains the connector only, no cable. Specify either a cable or a connector kit on the printer order.
1266 Series connector kitRound female 9-pin AMP
Connector only, for use with hostile-environment indicator models.
Replacement power supply295 and 590 Series ticket printers
Replacement part, 24 VDC.
Specifier & operator FAQ
Which indicators drive the 590 Series?
Three interface cables are offered. Cable 14807 connects an IS-3000, a TS-3200 or a TS600 Series indicator. Cable 16157 connects a TS-3200 in a NEMA 4X enclosure. Cable 15599 connects an IT-2000 or a TS-3200. Manual 51423 gives the TS611, TS612 and TS613 dip-switch settings, and manual 51262 carries a TM-U590 driver selection for the TS-3200.
Is the 590 Series legal for trade?
No NTEP Certificate of Conformance number and no Measurement Canada approval number for this printer appears in any source read, so both fields are blank. The two are separate approvals and neither implies the other. The printer receives data and set-up from the indicator, so recording-element coverage sits with the indicator's certificate. Confirm it with the weights and measures authority.
How many ticket copies does one insertion produce?
One original and four copies. The stock form is scale ticket 98948, a 3-part carbonless ticket measuring 4 in by 7.25 in, supplied 1,000 to the box. Thurman custom prints the ticket with a company name, address, assigned numbering or a different layout. The minimum order is 1,000 and delivery runs three to four weeks.
Is the interface cable included in the printer price?
The cable is a separate item number, but there is no charge when the cable or connector kit is ordered with the printer. It must be specified on the order. Connector kits 13486 and 15585 supply the connector alone, without a cable.
How do the 590 and the 295 differ?
They suit different tickets and different desks. The 590 prints 135.6 mm wide at 88 or 66 columns, measures 9.92 by 7.28 by 10.47 in and weighs 15 lb. The 295 prints 2.59 in wide at 35 characters per line, measures 4 by 7 by 7.5 in and weighs 8 lb. Copy capability is one original plus four copies on the 590, and up to four carbonless on the 295.
What consumables does the 590 use?
Two: cartridge ribbon 24810 and scale ticket 98948. Ribbon 24810 belongs to the 590 and is not the same item as ribbon 14979 on the 295 Series page. Ticket 98948 is 3-part carbonless, 4 in by 7.25 in, 1,000 to the box, and can be custom printed to a site's own layout.
