TS600 Washdown Indicator
NEMA 4X stainless for the wash bay, on a desk stand or the wall

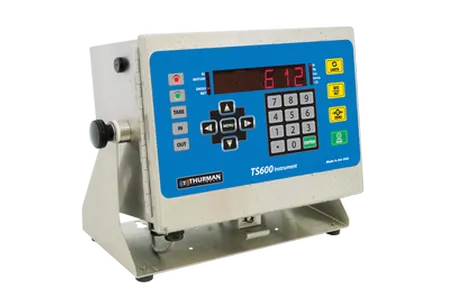

The TS600 washdown indicator suits truck wash lines, rendering plants and chemical loadout, and a wall mount keeps it out of the splash zone. A gasketed cover keeps its front-panel USB port sealed between transaction downloads. On the TS612, a technician reads per-cell counts and weights in the browser without opening the enclosure. It holds 1,000 tares and 100,000 transaction records.
The enclosure is stainless steel rated NEMA 4X, specified to 0 to 100% humidity, and measures 13.375 x 10.00 x 12.25 in. The TS612 connects over Intalogix® for cell-by-cell calibration and diagnostics, with Smart Sectional Controllers and a pit power supply on the scale. The TS602 takes analog cells in the same enclosure. Three RS232C, three USB 2.0, a 20 mA output and Ethernet TCP/IP are standard.
Features & benefits
Stainless steel NEMA 4X enclosure
Rated 0 to 100% humidity for wash bays and hostile indoor areas the NEMA 12 units are not rated for.
Desk stand or wall mounting
Sits on a console or goes on the wall out of the splash zone using the supplied stand and brackets.
Gasketed USB port cover
Keeps the front face sealed between transaction downloads.
Intalogix digital load-cell interface
Calibrate and diagnose cell by cell instead of isolating a failed cell by elimination.
Three RS232C, three USB 2.0, 20 mA and Ethernet standard
Printer, remote display, PC output and network output connect with no added card.
Graphic scale diagnostics in the browser
A technician reads per-cell counts and weights without opening a sealed enclosure.
100,000 transaction records and 1,000 stored tares
Holds a full season of inbound and outbound loops with no PC on site.
What's included
- TS612 stainless steel indicator, NEMA 4X, box assembly 32555
- Indicator stand 36371
- Scale Interface Card 30002 for Intalogix communication
- Power supply PCB 32388 or 38857 driving the pit power supply and SSCs
- Power cord assembly 34989 and gasketed USB cover 32556
- 2 GB microSD card factory-loaded with TS600 software (33468)
The technical picture
The TS612 is the sealed member of the TS600 line. The enclosure is stainless steel rated NEMA 4X and specified to 0 to 100% humidity, where the desktop TS611 is NEMA 12 and rated to 90%. It mounts on the supplied stand or on a wall, 13.375 in. knob-to-knob by 10.00 in. high by 12.25 in. deep.
Load cells connect over Intalogix® digital communication. Signals are digitized at scale-mounted Smart Sectional Controllers, so calibration and diagnostics run cell by cell. Three RS232C ports, three USB 2.0 ports, one 20 mA output and one RJ45 Ethernet TCP/IP port are standard.
Operation matches the rest of the line: three weigh modes, 1,000 stored tares and 100,000 transaction records. The web interface handles configuration, calibration and per-cell diagnostics. A gasketed cover keeps the front-panel USB port sealed between transaction downloads.
At a glance
| Series | TS600 |
|---|---|
| Form Factor | Desktop / wall |
| Enclosure / Material | Stainless NEMA 4X |
| NEMA Rating | NEMA 4X |
| Display | Bright red 16-segment LED |
| Connectivity / Comms | Three RS232C, three USB 2.0, 20 mA, Ethernet TCP/IP |
| Intalogix Option | Optional (TS612) |
| Key Features | Wet/dirty/hostile indoor use; 3 modes; traffic controls; transaction export |
| Certifications and standards |
|
Complete specifications are in the product documents below. Confirm current figures with your distributor before specifying.
Options & accessories
Item numbers and availability are confirmed at quotation. Ask your distributor to verify configuration and compatibility before ordering.
Added in the field Order any time
Smart Sectional ControllerStainless steel NEMA 4X
Required for each section of a truck scale or pair of load cells. Not included with the indicator - the price-book row for this indicator states the scale must be equipped with SSCs and PPS. Excitation voltage 6.3 VDC. Compatible with any analog load cell.
Pit power supplyRequired to power Smart Sectional Controllers
Required to power the Smart Sectional Controllers and not included with the indicator. An additional power supply is required for applications with more than 16 load cells.
4-20 mA analog output cardPassive, 16-bit
Only one expansion module fits socket J8 - a 4-20 mA card and the relay card cannot both be installed. Requires an isolated, dedicated power supply; most PLC power supplies are not isolated. One power supply per module.
4-20 mA analog output cardActive, 16-bit
Only one expansion module fits socket J8 - cannot be installed with the relay card or another analog output card.
Enhanced analog output card
Active device, powered by the indicator. Only one expansion module fits socket J8. Selectable ranges 0-5 V, 0-5.5 V, +/-5 V, +/-5.5 V, 0-10 V, +/-10 V, 0-11 V, +/-11 V, 0-20 mA, 0-24 mA and 4-20 mA.
24 VDC external power supply for the passive 4-20 mA card
Required with item 30919 only. Wall transformer, 120-220 VAC, 0.75 A.
Relay box interface card
Required to drive a 713 relay box or an ACC 778 LED traffic light. Not required when a 218T display controls the lights over the 20 mA interface. Only one expansion module fits socket J8, so it cannot be combined with a 4-20 mA card.
713 Series relay boxDry contact
Requires relay box interface card 30920 and box-to-indicator cable 17216.
87-key USB QWERTY keyboard
104-key USB QWERTY keyboard
CS 500 surge/uninterruptible power supply
LED traffic light
No power cord; AC power is hard wired in the field. Requires slipfitter 86573 or wall plate 29769. Traffic light control box not included. Wires to relay card 30920.
Manual traffic light control box
For 218T and ACC 778 traffic lights only.
One-direction traffic light kit
Two-direction traffic light kit
218 Series 5.0 in. high-intensity LED remote display
Interface cable 17216 required. A TS600 controls the traffic light through the 20 mA interface with this display, so no relay box is needed.
218 Series 1.5 in. high-intensity LED remote display
Interface cable 17216 required.
218 RF Series 5.0 in. wireless remote display
Includes RF modem and indicator-side power supply. No modem configuration required with a TS600. Range figures are best case.
590 Series ticket printer
Requires 336 Accessory cable 14807 to a TS600.
295 Series general purpose ticket printer
Requires 336 Accessory cable 14807 to a TS600.
220 Series tape printer
Requires cable 25932 to a TS600.
Remote serial tape printerNEMA 4X stainless, outdoor
For TS600 indicators. Includes pole-mount bracket, powder-coated shroud, AC surge protection, internal heater and a pair of short-haul modems. Indicator-to-printer cable is not included; up to 4,000 ft using cable 20903.
Specifier & operator FAQ
Is the TS612 rated for wash-down?
Yes. The enclosure is stainless steel rated NEMA 4X and specified to 0 to 100% humidity. The desktop TS611 is a different product: NEMA 12, rated to 90% humidity, and the manuals state the NEMA 12 units are not suitable for wash-down conditions.
How does the TS612 differ from the TS611?
Enclosure and mounting only. The TS612 is stainless NEMA 4X, desk stand or wall bracket, rated to 100% humidity. The TS611 is stainless and powder-coated steel, NEMA 12, desktop, rated to 90%. Firmware, ports, weigh modes and the web interface are identical.
Does it work with analog load cells?
No. The TS612 is the Intalogix version and requires Smart Sectional Controllers and a pit power supply on the scale. The analog equivalent in the same enclosure is the TS602, item 36180.
Which USB keyboards are listed for the TS612?
Two USB keyboards are offered as TS600 accessories: an 87-key, item 25498, and a 104-key, item 31036. Neither carries a washdown rating, so both belong in a dry office rather than in the wash area.
What is the warranty?
Two years on new product from date of shipment. Instrumentation, pit power supplies and Smart Sectional Controllers carry five years where Intalogix is installed and a service agreement with an authorized provider remains in effect for the warranty period.
