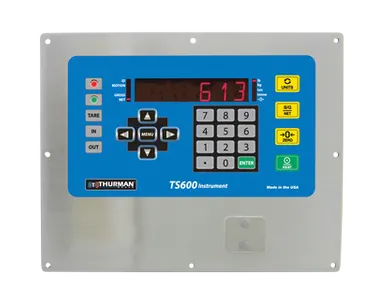

TS600 Panel Mount Indicator
Set into the console, 4.10 in. deep, serviced from a browser
The TS600 panel mount is the only TS600 that sets into an existing console, an operator station or an integrator's enclosure. Four assignable remote switch inputs put zero, print, tare and gross/net on external buttons when the face sits behind glass. Configuration and calibration run through its web interface from a laptop, so a technician services it without reaching behind the console. It holds 1,000 tares and 100,000 transactions.
The face is 13.38 x 10.60 in. at 4.10 in. deep, in stainless and powder-coated steel rated NEMA 12 and specified to 0 to 100% humidity. The TS613 connects over Intalogix® for cell-by-cell calibration and diagnostics, with Smart Sectional Controllers and a pit power supply on the scale. The TS603 takes analog cells. Three RS232C, three USB 2.0, a 20 mA output and Ethernet TCP/IP are standard.
Features & benefits
Panel-mount face, 13.38 x 10.60 in., 4.10 in. deep
Builds into a scale house console or an integrator's enclosure instead of taking desk space.
Stainless and powder-coated steel, rated to 100% humidity
Survives the same damp environments as the wall-mount unit once the face is sealed to the panel.
Intalogix digital load-cell interface
Calibrate and diagnose cell by cell instead of isolating a failed cell by elimination.
Three RS232C, three USB 2.0, 20 mA and Ethernet standard
Printer, remote display, PC output and network output connect with no added card.
Gasketed USB port cover on the front face
Transaction downloads without breaking the panel seal permanently.
Four assignable remote switch inputs
Zero, print, tare and gross/net move to external buttons when the face is behind glass.
100,000 transaction records and 1,000 stored tares
Holds a full season of inbound and outbound loops with no PC on site.
Web interface configuration and calibration
Service a built-in indicator from a laptop instead of reaching behind the console.
What's included
- TS613 panel-mount indicator: cover 32658, base 32659, front panel 32660
- Scale Interface Card 30002 for Intalogix communication
- Power supply PCB 32388 or 38857 driving the pit power supply and SSCs
- 6 ft power cord assembly 30467 and panel-mount USB cable 34332
- Gasketed USB cover 32556, top and side gaskets
- 2 GB microSD card factory-loaded with TS600 software (33468)
The technical picture
The TS613 is the TS600 built as a panel insert. A 13.38 x 10.60 in. face drops into a scale house console, an operator station or a customer enclosure at 4.10 in. deep, which is what separates it from the desktop TS611 and the wall-mounted TS612. The enclosure is stainless steel and powder-coated steel, specified to 0 to 100% humidity.
Load cells connect over Intalogix® digital communication, digitized at scale-mounted Smart Sectional Controllers for cell-by-cell calibration and diagnostics. Three RS232C ports, three USB 2.0 ports, one optically isolated 20 mA output and one RJ45 Ethernet TCP/IP port are standard, and USB access sits behind a gasketed cover.
Operation matches the rest of the line: three weigh modes, 1,000 stored tares, 100,000 transaction records, CSV or tab export, and a web interface for configuration, calibration and per-cell diagnostics.
At a glance
| Series | TS600 |
|---|---|
| Form Factor | Panel mount |
| Enclosure / Material | NEMA 12 |
| NEMA Rating | NEMA 12 |
| Display | Bright red 16-segment LED |
| Connectivity / Comms | Three RS232C, three USB 2.0, 20 mA, Ethernet TCP/IP |
| Intalogix Option | Optional |
| Key Features | 3 operating modes; built-in traffic controls; transaction export |
| Certifications and standards |
|
Complete specifications are in the product documents below. Confirm current figures with your distributor before specifying.
Options & accessories
Item numbers and availability are confirmed at quotation. Ask your distributor to verify configuration and compatibility before ordering.
Added in the field Order any time
Smart Sectional ControllerStainless steel NEMA 4X
Required for each section of a truck scale or pair of load cells. Not included with the indicator - the price-book row for this indicator states the scale must be equipped with SSCs and PPS. Excitation voltage 6.3 VDC. Compatible with any analog load cell.
Pit power supplyRequired to power Smart Sectional Controllers
Required to power the Smart Sectional Controllers and not included with the indicator. An additional power supply is required for applications with more than 16 load cells.
4-20 mA analog output cardPassive, 16-bit
Only one expansion module fits socket J8 - a 4-20 mA card and the relay card cannot both be installed. Requires an isolated, dedicated power supply; most PLC power supplies are not isolated. One power supply per module.
4-20 mA analog output cardActive, 16-bit
Only one expansion module fits socket J8 - cannot be installed with the relay card or another analog output card.
Enhanced analog output card
Active device, powered by the indicator. Only one expansion module fits socket J8. Selectable ranges 0-5 V, 0-5.5 V, +/-5 V, +/-5.5 V, 0-10 V, +/-10 V, 0-11 V, +/-11 V, 0-20 mA, 0-24 mA and 4-20 mA.
24 VDC external power supply for the passive 4-20 mA card
Required with item 30919 only. Wall transformer, 120-220 VAC, 0.75 A.
Relay box interface card
Required to drive a 713 relay box or an ACC 778 LED traffic light. Not required when a 218T display controls the lights over the 20 mA interface. Only one expansion module fits socket J8, so it cannot be combined with a 4-20 mA card.
713 Series relay boxDry contact
Requires relay box interface card 30920 and box-to-indicator cable 17216.
87-key USB QWERTY keyboard
104-key USB QWERTY keyboard
CS 500 surge/uninterruptible power supply
LED traffic light
No power cord; AC power is hard wired in the field. Requires slipfitter 86573 or wall plate 29769. Traffic light control box not included. Wires to relay card 30920.
Manual traffic light control box
For 218T and ACC 778 traffic lights only.
One-direction traffic light kit
Two-direction traffic light kit
218 Series 5.0 in. high-intensity LED remote display
Interface cable 17216 required. A TS600 controls the traffic light through the 20 mA interface with this display, so no relay box is needed.
218 Series 1.5 in. high-intensity LED remote display
Interface cable 17216 required.
218 RF Series 5.0 in. wireless remote display
Includes RF modem and indicator-side power supply. No modem configuration required with a TS600. Range figures are best case.
590 Series ticket printer
Requires 336 Accessory cable 14807 to a TS600.
295 Series general purpose ticket printer
Requires 336 Accessory cable 14807 to a TS600.
220 Series tape printer
Requires cable 25932 to a TS600.
Remote serial tape printerNEMA 4X stainless, outdoor
For TS600 indicators. Includes pole-mount bracket, powder-coated shroud, AC surge protection, internal heater and a pair of short-haul modems. Indicator-to-printer cable is not included; up to 4,000 ft using cable 20903.
Specifier & operator FAQ
What model number is the TS600 panel mount?
TS613 with Intalogix, item 36183, and TS603 with an analog load-cell interface, item 36181. TS613 is the designation used in service manual 51422 and literature 100616.
What is the panel cut-out size?
The published face is 13.38 x 10.60 in. with a depth of 4.10 in. behind the panel. Literature 100616 p.4 gives outline dimensions rather than a cut-out drawing; request the installation drawing before fabricating a panel.
Does it work with analog load cells?
No. The TS613 is the Intalogix version and requires Smart Sectional Controllers and a pit power supply. The analog panel mount is the TS603, item 36181.
Can the operator controls be moved off the front face?
Yes. Four remote switch inputs are assignable to zero, print, tare and gross/net, wired to external buttons and configured under Remote Switches in the configuration menu.
What is the warranty?
Two years on new product from date of shipment. Instrumentation, pit power supplies and Smart Sectional Controllers carry five years where Intalogix is installed and a service agreement with an authorized provider remains in effect for the warranty period.
