TS250 Indicator - Stainless NEMA 4X
Six keys in NEMA 4X stainless, for the washdown line

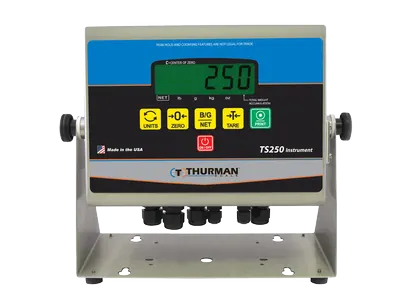

The stainless TS250 mounts in the platform's washdown zone, on its supplied bench or wall bracket. Its NEMA 4X enclosure meets general food and other industrial washdown requirements. Calibration and sealing happen at a two-screw cover plate, so routine service does not open the washdown boundary. The optional stainless Ethernet TCP accessory installs alongside a PLC interface, so weight reaches the plant network and the PLC.
Inside is the ABS build's TS250 platform: eight 350 ohm or sixteen 1000 ohm analog load cells and a 6-digit, 1.0 in. backlit LCD. The six front-panel keys match the ABS build, so an operator trained on one knows both. The enclosure is 304 series stainless steel, and cabling enters through sealing glands. COM1 and COM2 are standard as RS232, RS422 or RS485, with 20 mA passive on COM2.
Features & benefits
304 stainless steel enclosure, NEMA 4X rated
Meets general food and other industrial washdown requirements on wet lines.
Ethernet TCP accessory 33557 for stainless enclosures
Can be installed with a PLC interface option, so weight reaches the plant network and the PLC.
Bolted cover plate over the calibration switch
The wire lead seal threads through the plate screws, keeping the sealed boundary intact.
Eight 350 ohm or sixteen 1000 ohm load cell capacity
Runs a washdown floor scale or a stainless tank without a second junction device.
Multi-point calibration, up to four points
Corrects linearity on tanks and vessels where a single span will not hold across the range.
Custom unit of measure via PC25X
Reads out in bushels, barrels, gallons or another plant unit instead of pounds.
Stainless swivel desk/wall bracket included
Mounts on a bench or a wall inside the same washdown zone as the platform.
What's included
- TS250 indicator, 304 stainless NEMA 4X enclosure
- Stainless steel swivel desk/wall bracket
- AC power cord, factory wired for 110 VAC
- Sealing cover plate over the program switch
The technical picture
The TS250 in 304 series stainless steel carries a NEMA 4X rating and meets general food and other industrial washdown requirements. The weighing platform matches the ABS build: eight 350 ohm or sixteen 1000 ohm load cells, a 6-digit 1.0 in. green backlit LCD, capacity to 999,999 and divisions from 0.0001 to 50.
Cabling enters through sealing glands, not a case-mounted connector. COM1 and COM2 land on the board as RS232, RS422 or RS485, with 20 mA passive on COM2. The stainless build takes Ethernet TCP accessory 33557, which can be installed alongside a PLC interface option. The ABS enclosure does not allow that pairing. Shipping weight is 12 lb.
Calibration access is a screwed cover plate at the lower right. The wire lead seal threads through its two screws. The front panel is the same six keys as the ABS model, so an operator trained on one is trained on both.
At a glance
| Series | TS250 |
|---|---|
| Form Factor | Wall / desktop |
| Enclosure / Material | Stainless steel |
| NEMA Rating | NEMA 4X |
| Display | 1.0" back-lit LCD |
| Connectivity / Comms | COM1/COM2 RS232, RS422 or RS485; 20 mA passive on COM2; glanded entry. Optional Ethernet TCP, 4-20 mA, Bluetooth, PLC interface — Ethernet TCP and PLC can be combined |
| Intalogix Option | No |
| Key Features | Washdown-rated stainless enclosure |
| Certifications and standards |
|
Complete specifications are in the product documents below. Confirm current figures with your distributor before specifying.
Options & accessories
Item numbers and availability are confirmed at quotation. Ask your distributor to verify configuration and compatibility before ordering.
Added in the field Order any time
PC25X programming cable10 ft, DB9 female to bare wires (stainless indicators)
10 ft cable, female DB9 (computer) to bare wires (TS250 SS). The stainless enclosure has no external DB9; the cable lands on the terminal block.
4-20 mA analog output module
Includes internal cabling. 16-bit, passive. Cannot be installed with a PLC interface option. Requires an isolated, dedicated power supply, one per module; most PLC power supplies are not isolated.
Five-cell D battery accessoryStainless enclosure
Field-installed five-cell “D” battery pack for the stainless enclosure. Batteries not included. Part number 34661 is the factory-built AC/battery stainless indicator.
Ethernet TCP accessoryStainless NEMA 4X and IP69K enclosures
For the SS NEMA 4X enclosure. Can be installed with a PLC interface option.
PROFIBUS-DP PLC interface
All PLC interfaces are field-installed. Cannot be installed with the 4-20 mA option. Provides weight data only.
DeviceNet PLC interface
All PLC interfaces are field-installed. Cannot be installed with the 4-20 mA option. Provides weight data only.
Ethernet/IP module (industrial Ethernet)
All PLC interfaces are field-installed. Cannot be installed with the 4-20 mA option. Provides weight data only. Ethernet/IP is a PLC protocol and is not the same product as the Ethernet TCP accessory.
ControlNet PLC interface
All PLC interfaces are field-installed. Cannot be installed with the 4-20 mA option. Provides weight data only.
Modbus TCP PLC interface
All PLC interfaces are field-installed. Cannot be installed with the 4-20 mA option. Provides weight data only.
Bluetooth® serial adapter
Uses Port 1 or Port 2 RS232. Range 100 m (328 ft). Acts as server to a printer, client to a PC. Item number, availability and pricing are confirmed at quotation.
Bluetooth Class I accessoryIndicator side
Powered by the indicator and supplied with cable 29402. Runs over COM1 or COM2 as RS232, with a range of 100 m (328 ft). A link needs the far end as well: 29515 for the PC or printer side, AC adapter 29639 where its USB power cable does not suit, and cable 24331Q to reach a printer. The indicator is the server when it connects to a printer and the client when it connects to a PC.
Specifier & operator FAQ
Is the stainless TS250 suitable for washdown?
The 304 stainless enclosure is rated NEMA 4X and the literature states it meets general food and other industrial washdown requirements. No IP rating is published for this enclosure, so specify it by its NEMA 4X rating. Operating range is -10 to +40 C (+14 to +104 F).
Why are there two Ethernet TCP item numbers?
The accessory is enclosure-specific. Item 33555 is the ABS version and cannot be installed with a PLC interface option. Item 33557 is the SS NEMA 4X version and can be installed with a PLC interface option. Both are separately priced, field-installed accessories, not standard equipment.
Is legal-for-trade approval in place?
NTEP Certificate of Conformance 15-099 covers the TS250 Series for commercial use up to 10,000 divisions against NIST Handbook 44. Measurement Canada approval AM-6002 is a separate approval with its own number. Peak hold and piece-count modes are not legal for trade.
How is the stainless indicator calibrated and sealed?
Remove the cover plate at the lower right of the enclosure and press the internal program switch to cycle through SET-UP, CONFIG, APP and CAL. After calibration the wire lead seal is threaded through the two screws that hold the access plate, then crimped. Cover screws torque to 18 +/- 2 in-lb.
Can the stainless TS250 run without AC power?
Part number 34644 is AC only. Battery accessory 29265 is a field-installed five-cell pack for the stainless enclosure, and 34661 is the factory AC/battery stainless build. With one 350 ohm load cell, the backlight off and both serial ports off, the manual rates 55 hours of run time.
Manuals & literature
Operator manual · IndicatorsDownload
Spec sheet · LiteratureDownload
