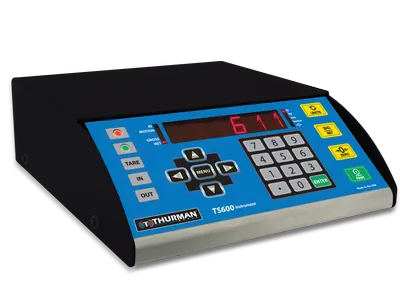

TS600 Desktop Indicator
100,000 transactions on the desk, exported to a USB drive
The TS600 desktop runs one truck scale and holds a full season of inbound and outbound loops with no PC on site. A drag-and-drop string builder matches an existing host application's serial or TCP format without middleware. Printers, remote displays and PC output use its standard ports, with no added card. Automatic traffic light sequencing is standard; lights connect through the optional relay card or a 218T display.
Two builds share the desktop enclosure: the TS611 with Intalogix® for cell-by-cell calibration and diagnostics, and the TS601 for analog load cells. It reads a single scale of as many as 16 cells at 1000 ohms or 10 at 350 ohms. The NEMA 12 enclosure is stainless and powder-coated steel with a 0.80 in. red LED display. Three RS232C, three USB 2.0, a 20 mA output and Ethernet TCP/IP are standard.
Features & benefits
Intalogix digital load-cell interface
Calibrate and diagnose cell by cell instead of isolating a failed cell by elimination.
Graphic scale diagnostics in the browser
One screen shows cell numbers, calibrated zero counts, live counts or weights, and gross weight.
100,000 transaction records and 1,000 stored tares
Holds a full season of inbound and outbound loops with no PC on site.
CSV or tab transaction export to a USB drive
Reports drop onto a flash drive sorted by loop ID, date/time or ticket number.
Three RS232C, three USB 2.0, 20 mA and Ethernet standard
Printer, remote display, PC output and network output connect with no added card.
Automatic traffic light sequencing off threshold weight
Lights cycle on the weighment, 2-10 s delay. Driving lights needs relay card 30920 or a 218T display.
Drag-and-drop custom output string builder
Match an existing host application's serial or TCP format without middleware.
Live weight in a browser with no login
Any phone, tablet or PC on the network reads the scale from the indicator IP address.
What's included
- TS611 desktop indicator, stainless and powder-coated steel, NEMA 12
- Scale Interface Card 30002 for Intalogix communication
- Power supply PCB 32388 or 38857 driving the pit power supply and SSCs
- 6 ft power cord assembly 30467
- 2 GB microSD card factory-loaded with TS600 software (33468)
The technical picture
The TS611 runs one scale over Intalogix® digital load-cell communication. Load-cell signals are digitized at scale-mounted Smart Sectional Controllers, so calibration and diagnostics run cell by cell instead of across one summed analog signal. Capacity is programmable to 999,999 at 10,000-division commercial resolution.
The desktop enclosure is stainless and powder-coated steel rated NEMA 12, 12.125 x 10.375 x 3.625 in. Three RS232C ports, three USB 2.0 ports, one optically isolated 20 mA output and one RJ45 Ethernet TCP/IP port are standard. The display is a 0.80 in. bright red 16-segment LED.
Three operating modes cover gross-tare-net, inbound/outbound and basic in/out, with 1,000 stored tares and 100,000 transaction records. Reports export to a USB drive as CSV or tab files. The web interface handles configuration, ticket formatting, calibration and a per-cell scale diagnostic.
At a glance
| Series | TS600 |
|---|---|
| Form Factor | Desktop |
| Enclosure / Material | NEMA 12 |
| NEMA Rating | NEMA 12 |
| Display | 16-segment LED |
| Connectivity / Comms | Three RS232C, three USB 2.0, 20 mA, Ethernet TCP/IP |
| Intalogix Option | Optional (TS611) |
| Key Features | 3 operating modes; built-in traffic controls; transaction export |
| Certifications and standards |
|
Complete specifications are in the product documents below. Confirm current figures with your distributor before specifying.
Options & accessories
Item numbers and availability are confirmed at quotation. Ask your distributor to verify configuration and compatibility before ordering.
Added in the field Order any time
Smart Sectional ControllerStainless steel NEMA 4X
Required for each section of a truck scale or pair of load cells. Not included with the indicator - the price-book row for this indicator states the scale must be equipped with SSCs and PPS. Excitation voltage 6.3 VDC. Compatible with any analog load cell.
Pit power supplyRequired to power Smart Sectional Controllers
Required to power the Smart Sectional Controllers and not included with the indicator. An additional power supply is required for applications with more than 16 load cells.
4-20 mA analog output cardPassive, 16-bit
Only one expansion module fits socket J8 - a 4-20 mA card and the relay card cannot both be installed. Requires an isolated, dedicated power supply; most PLC power supplies are not isolated. One power supply per module.
4-20 mA analog output cardActive, 16-bit
Only one expansion module fits socket J8 - cannot be installed with the relay card or another analog output card.
Enhanced analog output card
Active device, powered by the indicator. Only one expansion module fits socket J8. Selectable ranges 0-5 V, 0-5.5 V, +/-5 V, +/-5.5 V, 0-10 V, +/-10 V, 0-11 V, +/-11 V, 0-20 mA, 0-24 mA and 4-20 mA.
24 VDC external power supply for the passive 4-20 mA card
Required with item 30919 only. Wall transformer, 120-220 VAC, 0.75 A.
Relay box interface card
Required to drive a 713 relay box or an ACC 778 LED traffic light. Not required when a 218T display controls the lights over the 20 mA interface. Only one expansion module fits socket J8, so it cannot be combined with a 4-20 mA card.
713 Series relay boxDry contact
Requires relay box interface card 30920 and box-to-indicator cable 17216.
87-key USB QWERTY keyboard
104-key USB QWERTY keyboard
CS 500 surge/uninterruptible power supply
LED traffic light
No power cord; AC power is hard wired in the field. Requires slipfitter 86573 or wall plate 29769. Traffic light control box not included. Wires to relay card 30920.
Manual traffic light control box
For 218T and ACC 778 traffic lights only.
One-direction traffic light kit
Two-direction traffic light kit
218 Series 5.0 in. high-intensity LED remote display
Interface cable 17216 required. A TS600 controls the traffic light through the 20 mA interface with this display, so no relay box is needed.
218 Series 1.5 in. high-intensity LED remote display
Interface cable 17216 required.
218 RF Series 5.0 in. wireless remote display
Includes RF modem and indicator-side power supply. No modem configuration required with a TS600. Range figures are best case.
590 Series ticket printer
Requires 336 Accessory cable 14807 to a TS600.
295 Series general purpose ticket printer
Requires 336 Accessory cable 14807 to a TS600.
220 Series tape printer
Requires cable 25932 to a TS600.
Remote serial tape printerNEMA 4X stainless, outdoor
For TS600 indicators. Includes pole-mount bracket, powder-coated shroud, AC surge protection, internal heater and a pair of short-haul modems. Indicator-to-printer cable is not included; up to 4,000 ft using cable 20903.
Specifier & operator FAQ
Does the TS611 work with analog load cells?
No. The TS611 is the Intalogix version and requires a scale fitted with Smart Sectional Controllers and a pit power supply. The analog equivalent is the TS601, item 36165, which uses the Analog Scale Card 30997 in the same desktop enclosure.
How many load cells can it handle?
Up to 16 at 1000 ohms, or up to 10 at 350 ohms, on one scale. The TS611 controls a single scale only.
Can traffic lights be driven straight from the indicator?
The control logic is standard and runs automatically off the threshold weight, with a 2-10 second event delay. Physical lights are separately priced. One route is relay interface card 30920 with a relay box or an ACC 778 light. The other is a 218T remote display, which the TS600 drives over the 20 mA interface with no relay box.
How do transactions get off the indicator?
Three ways. Reports write to a USB flash drive as CSV or tab files sorted by loop ID, date/time or ticket number. A continuous stream goes to a PC over serial or Ethernet TCP/IP in one of five factory-defined formats or a custom string. Transactions are also viewable in the web interface.
What is the warranty?
Two years on new product from date of shipment. Instrumentation, pit power supplies and Smart Sectional Controllers carry five years where Intalogix is installed and a service agreement with an authorized provider remains in effect for the warranty period.
